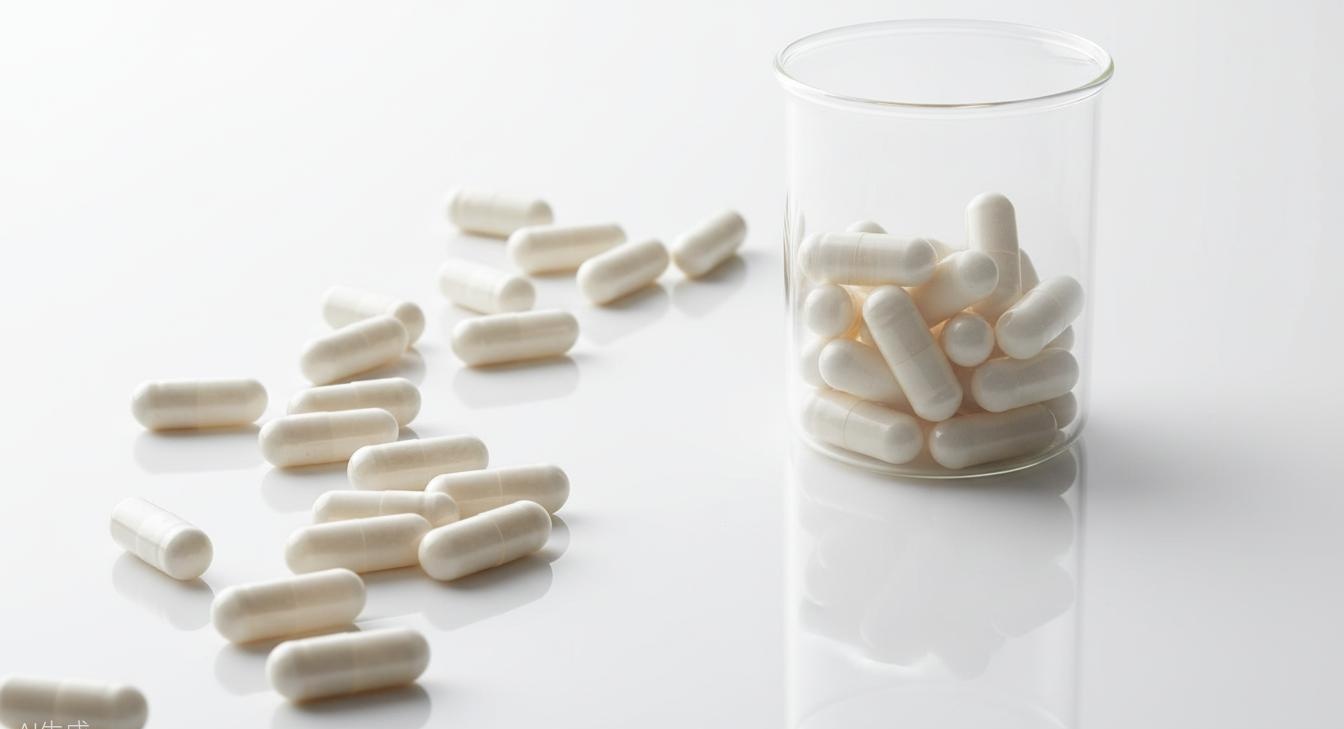

HPMC Capsules Bulk Order: Low-Viscosity (5-15 mPa·s) Shell for High-Speed Automatic Filling Machines

It started with a simple observation: when contract manufacturers plan to upgrade their filling speed from 35,000 to 60,000 capsules per hour, the first thing that breaks is not the machine -- it is the capsule shell. I learned this in 2019 when we moved a large volume product from gelatin capsules to HPMC and suddenly saw a 45% improvement in fill speed on our bottom KFA-200 lines. The lower viscosity shell had everything to do with that speed improvement.

That observation led me down a research path that focuses on: what makes a capsule shell flow at high speed, and how do low-viscosity HPMC, pullulan, and gelatin shells compare in this context. That is what this guide explains.

What Is Low-Viscosity HPMC: A Foundational Guide

Low-viscosity HPMC capsule shell is a type of capsule shell formulation where the raw resin viscosity is reduced below 5 mPa.s and 15 mPa.s at 60 degrees C. Lower viscosity means the gel coating process produces a shell with thinner walls and more rapid seam closure that gelatin or high-viscosity HPMC shells cannot match.

In terms of mixing proportions, low-viscosity HPMC reduces the mixing time during the dipping process, which simplifies process control and improves throughput. The standard viscosity range for pharmaceutical HPMC capsules is 5-15 mPa.s, but at Shancy we specify 5-6 mPa.s for our automatic filling grade -- optimized specifically for high-speed equipment.

Why Viscosity Is the Critical Factor for Automatic Filling Speed

When a capsule shell has high viscosity, the dipping pin retains a thicker film of coating solution. During the subsequent drying and setting phase, this thicker film takes longer to form a consistent seam. At high filling speeds -- above 50,000 capsules per hour -- this slower seam formation becomes a bottleneck. Capsules may not seal properly before they reach the filling station, leading to shell deformation, seam split, or product leakage.

Low-viscosity shells solve this problem. Because the coating solution spreads more thinly and sets more rapidly, seam closure happens faster -- giving you a properly sealed capsule by the time it reaches the filling station, even at 60,000+ capsules per hour.

HPMC vs Gelatin vs Pullulan: Which Shell Is Right for Your Equipment

I am often asked whether HPMC, gelatin, or pullulan capsules are better for high-speed automatic filling. The honest answer is: it depends on your formulation, your market, and your equipment. Let me give you the framework to make that decision yourself.

For high-speed automatic filling, HPMC with low-viscosity specification is my default recommendation. The moisture content of HPMC (2-4%) means your fill formulation sees a very dry environment during storage, which is beneficial for moisture-sensitive APIs. Gelatin remains the workhorse for standard pharmaceutical applications where cost is the primary driver. Pullulan is excellent for premium vegetarian products but the higher base viscosity requires careful equipment adjustment for high-speed lines.

The Science of Low-Viscosity HPMC Shell Performance

Viscosity and Dipping Process Dynamics

The viscosity of the HPMC solution determines how the dipping pins are coated during capsule manufacture. High viscosity produces thicker films and heavier shells; low viscosity produces thinner, more uniform films. In automatic filling, thinner shells from low-viscosity HPMC translate directly into faster and more reliable seam closure.

At Shancy, we control our low-viscosity HPMC capsule production with inline viscosity sensors during the dipping process. Our target is 5-6 mPa.s at 60 degrees C, which we maintain within a narrow band through real-time process monitoring. This is what enables our customers to run reliably at 60,000+ capsules per hour on modern high-speed equipment.

Moisture Content and Fill Material Compatibility

HPMC capsules contain only 2-4% moisture, compared to 12.5-17.5% for gelatin capsules. This dramatically lower moisture content has important implications for your formulation. Moisture-sensitive APIs, hygroscopic compounds, and probiotic formulations often perform better in HPMC capsules because the low moisture environment minimizes degradation reactions that require water as a reactant or medium.

However, the low moisture content also means that HPMC capsules are more susceptible to static charge buildup during high-speed processing. At Shancy, we address this through anti-static additive options in our formulation and careful control of the relative humidity in our encapsulation environment.

High-Speed Automatic Filling Machine Compatibility

Not all capsule shells are created equal when it comes to high-speed automatic filling. I have worked with manufacturers running BOSCH GKF series, IMA KFA-200, and MG2 Nautica lines at speeds from 40,000 to 100,000 capsules per hour. Here is what I have learned about matching capsule shell to equipment.

BOSCH GKF Series (GKF 500, GKF 720, GKF 2500)

The BOSCH GKF series is among the most common high-speed encapsulation equipment I encounter in pharmaceutical contract manufacturing. At speeds above 1,500 blisters per minute (approximately 60,000+ capsules per hour), the demands on shell quality become acute. Low-viscosity HPMC shells with our 5-6 mPa.s specification have been validated on BOSCH GKF 720 at speeds up to 1,800 blisters per minute without seam failures.

IMA KFA-200 and KFA-40

IMA KFA series machines are widely used in both pharmaceutical and nutraceutical contract manufacturing. Our low-viscosity HPMC capsules have been validated on KFA-200 at speeds up to 70,000 capsules per hour with a rejection rate below 0.1%. The key parameters we monitor are: capsule seam strength (must exceed 5N), dimensional consistency (lock length within +/- 0.1mm), and dissolution time (must meet USP 711 for the target dissolution medium).

Bulk Order Specifications: What to Specify When Ordering HPMC Capsules

When you place a bulk order for HPMC capsules for high-speed automatic filling, the specification sheet matters enormously. Here are the parameters that I consider non-negotiable for any order above 10 million capsules.

Viscosity Specification (Most Critical)

Always specify the viscosity as a range with a target value and tolerance. Request: viscosity of 5-6 mPa.s at 60 degrees C by Brookfield viscometer ( spindle LV at 12 rpm). Ask your supplier for the Certificate of Analysis showing actual measured viscosity for each batch. A supplier who cannot provide batch-specific viscosity data is not controlling their process to the level required for high-speed filling.

Capsule Dimensions and Lock Length

For automatic filling equipment, capsule dimensional consistency is as important as viscosity. You need: body length (+/- 0.1mm), body outer diameter (+/- 0.05mm), lock length (+/- 0.15mm), and shell wall thickness (uniform, typically 80-110 micrometers for HPMC). Variation beyond these tolerances causes feeding problems, jamming, and incorrect fill weight.

Seam Strength and Compression Force

The seam is the most mechanically vulnerable point of any capsule, and the seam strength must be sufficient to survive pneumatic transport, filling machine transfer, and subsequent handling without opening. For high-speed lines, we specify: seam strength greater than 5 Newtons, compression force for body-closing of 20-40N, and no seam delamination after 30 minutes in a humidity chamber at 75% RH and 25 degrees C.

Certifications Required for HPMC Capsule Bulk Orders

Different markets require different certifications for HPMC capsule products. Unlike gelatin, HPMC does not carry BSE/TSE risk, which simplifies the documentation burden for some markets. However, HALAL and KOSHER certifications remain important for Muslim and Jewish consumers, and GMP compliance is mandatory for pharmaceutical applications.

Bulk Order Pricing and Minimum Order Quantities

For low-viscosity HPMC capsules in pharmaceutical grade with full certification portfolio, the typical wholesale price range is USD 35-65 per million capsules for standard sizes (0, 1, 2, 3) and colors. Premium specifications -- including custom colors, custom prints, or narrow viscosity tolerances -- carry additional cost.

Minimum order quantities for bulk HPMC capsule orders typically start at 5 million capsules per size and color. For mixed-size orders or custom specifications, the minimum may be higher. At Shancy, we offer volume pricing tiers starting at 20 million capsules per order, with lead times of 3-5 weeks for standard specifications and 5-8 weeks for custom colors or narrow viscosity tolerances.

How to Place a Bulk Order for HPMC Capsules

Step 1: Define Your Technical Specifications

Before contacting any supplier, have your technical specification document ready. Include: capsule size(s) required, viscosity target and tolerance (5-6 mPa.s or your specific range), color and print requirements, target markets and required certifications, fill volume and target dissolution profile, and estimated annual volume and order frequency.

Step 2: Request Samples with CoA

Request 10,000-20,000 capsule samples with the full Certificate of Analysis for that batch. Run the samples on your actual equipment at your target speed. The CoA should include: viscosity measurement, moisture content, dimensional measurements, seam strength, and dissolution data per USP 711.

Step 3: Validate and Sign Supply Agreement

After successful sample testing, negotiate a supply agreement that includes: volume commitment and pricing tier, quality specification with rejection criteria, regulatory documentation packages (DMF references, CEP, HALAL certificates), and lead time commitments and safety stock requirements.

Why Shancy Capsule for Your HPMC Capsule Bulk Order

We have invested specifically in low-viscosity HPMC capsule production because we believe it is the future of high-speed automatic filling. Our production lines are optimized for viscosity control, with inline sensors that monitor and adjust viscosity in real time during the dipping process. This is not common in the industry -- most manufacturers measure viscosity only in final batch testing, which means they discover problems after production rather than preventing them during production.

We supply HPMC capsules in Size 0, 1, 2, 3, and 4, with viscosity specifications of 5-6 mPa.s at 60 degrees C for automatic filling applications. We hold GMP, FDA DMF, HALAL, and KOSHER certifications, and we can provide batch-specific CoA with viscosity, moisture, dimensional, seam strength, and dissolution data for every production batch.
